Product Details:
|
| Material: | Q355B Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Application: | Power Transmission |
| Certificate: | ISO9001:2008 | Tolerance: | ±1% |
| Highlight: | 4 legged lattice transmission tower,Q345b lattice transmission tower,galvanized electricity tower |
||

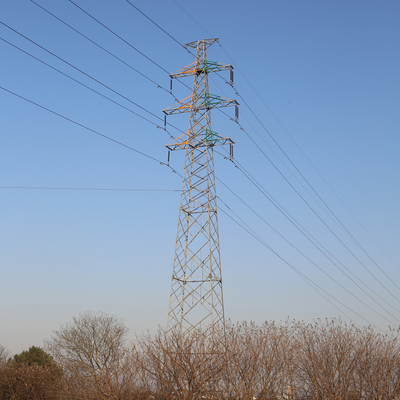

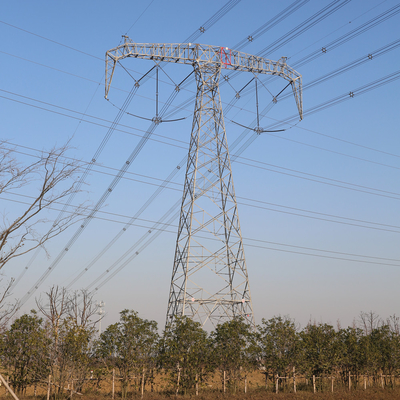

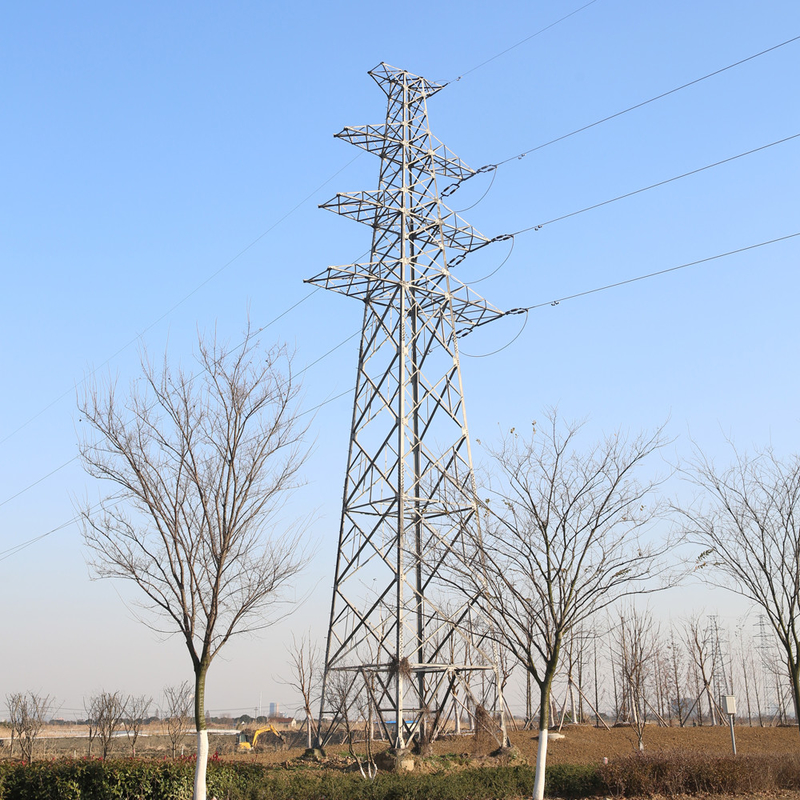

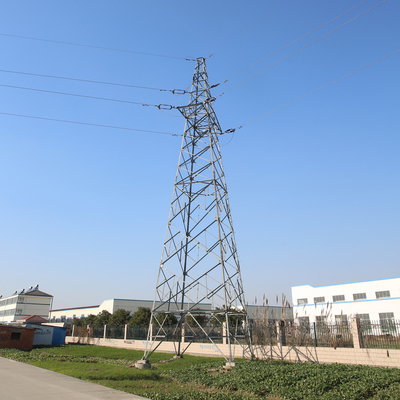

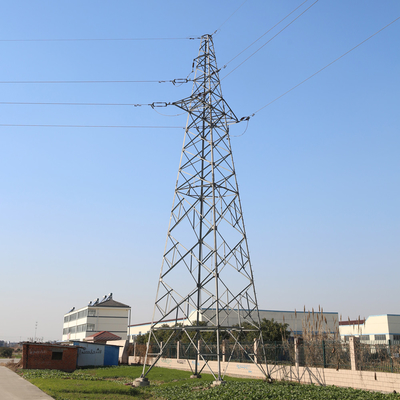

Hot dip galvanized Q345B transmission steel tower steel lattice tower 4 legged steel tower
Transmission towers
Transmission towers support the high-voltage conductors of overhead power lines, from the generating station switchyard right up to the source substations and satellite substations located near populated areas. Their shape, height and sturdiness (mechanical strength) depend on the stresses to which they are exposed.
There are four major categories of transmission towers: suspension, terminal, tension, and transposition.
How are transmission towers built?
Structure Construction
Structures are assembled in sections near the new tower location and a crane is used to lift the sections into place. Crews then bolt the sections together. TSPs are either completely assembled near the tower location and then erected at once, or are assembled in sections.
| Height | From 10M-100M or according to client’s requirement | |||||
| Suit for | Electric Power Transmission and Distribution | |||||
| Material | Normally Q235B/A36,Yeild Strength≥235MPa | |||||
| Q345B/A572,Yeild Strength≥345MPa | ||||||
| As well as Hot Rolled coil from ASTM572, GR65,GR50,SS400 | ||||||
| Power Capacity | 10kV to 500kV | |||||
| Tolerance of the dimension | According to client’s requirement | |||||
| Surface treatment | Hot-dip-galvanized following ASTM123, or any other standard by client’s requirement | |||||
| Joint of Poles | Slip joint, flanged connected | |||||
| Standard | ISO9001:2008 | |||||
| Length of per section | Within 13M once forming | |||||
| Welding Standard | AWS(American Welding Society)D 1.1 | |||||
| Production Process | Raw material test-cutting-bending-welding-dimension verify-flange welding-hole drilling-sample assemble-surface clean-galvanization or power coating /painting-recalibration-packages | |||||
| Packages | Packing with plastic paper or according to client’s requirement | |||||
| Life Period | More than 25 years, it is according to installing environment | |||||
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
FAQ
1. Are you a manufacturer or trading company?
Our company is a transmission tower, communication tower and related accessories professional manufacturers, with experienced
workers. All of our products are made according to customer demand production.
2. What is your main products?
Our Company is mainly manufacturing all kinds of steel towers, including angle steel towers, steel tube towers, steel tube poles,
substation structures, fittings and components of power line transmission and distribution, etc.
3. What is the standard of your products?
Our products are all manufactured in accordance with the requirements of the GB2694-2018.
4. Which port for delivery?
Located in Yixing city, we mainly ship from big ports such as Shanghai, Ningbo ports.
