Product Details:
|
| Material: | Q355B Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Design: | ANSI/TIA-222-G | Bolt: | GR8.8 |
| Lifetime: | More Than 20 Years | Galvanization Standard: | ASTM A123/ ISO 1461 |
| Highlight: | GR8.8 Lattice Cell Phone Tower,Telecom Self Supporting Lattice Tower,hot dip galvanized Lattice Tower |
||

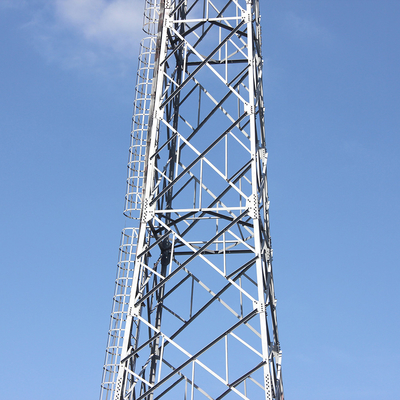

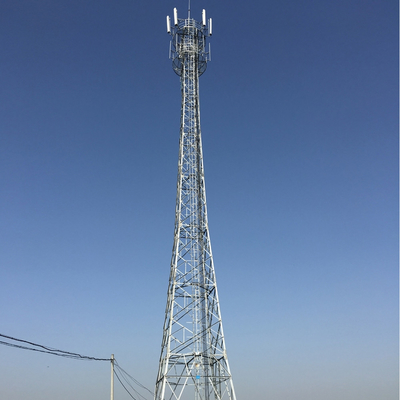

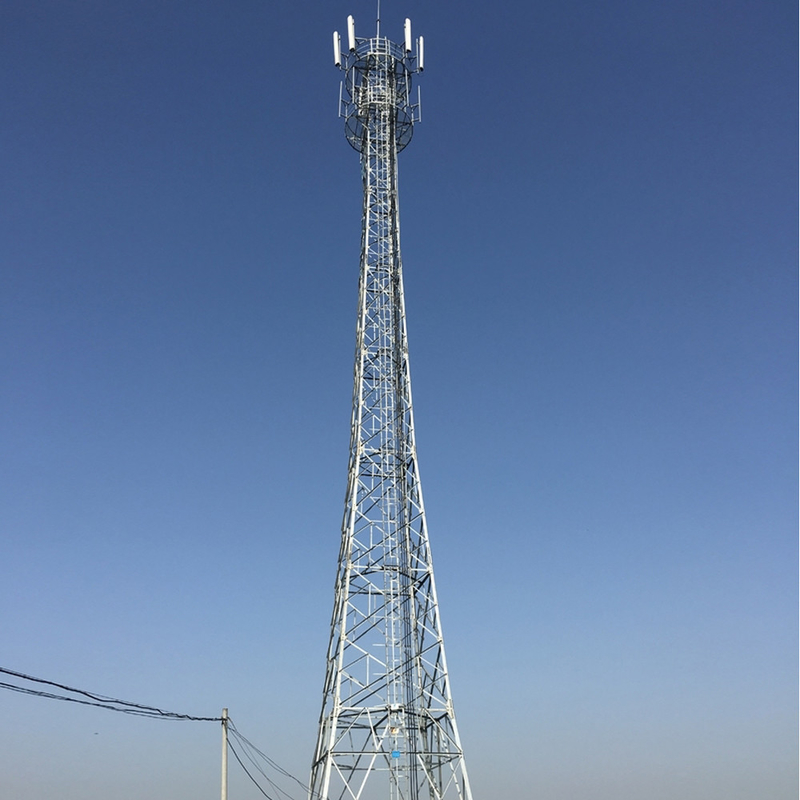

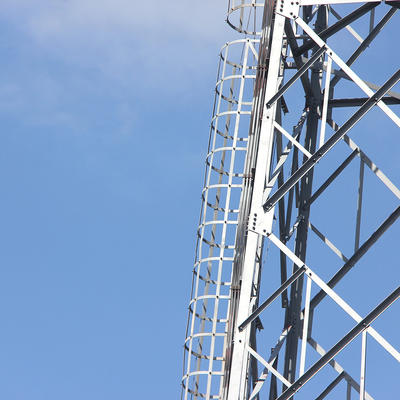

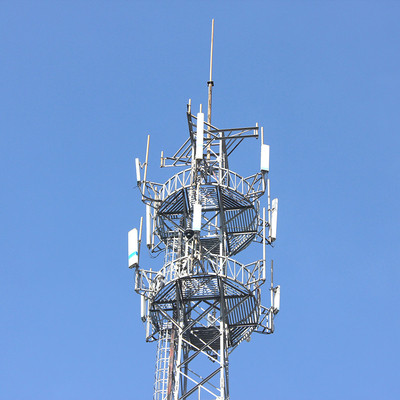

cell phone tower Custom factory direct lowest price lattice cell phone telecom self supporting tower
Telecommunication Tower means all types of towers including but not limited to: a monopole; tripole; lattice tower; guyed tower; self-support tower; pole; mast; or other structure, which are used to support one or more telecommunication antennae for the purpose of radio telecommunications and which may be located at ground level or on the roof of a building and may include an equipment shelter containing electronic equipment and which is not staffed on a permanent basis and only requires periodic maintenance.
| Design Code | ANSI/TIA222G, European Standard and others |
| Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
| Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| Steel Grade | 1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
| Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Jiangsu Mingyuan Tower Co., Ltd, established in 2009, is situated in Yixing, Jiangsu Province, China, which is near Shanghai with convenient transportation access. It owns the area of 63,000m2 and the production area is about 20,000m2, with the annual output capacity over 30,000 tons.
Our main products: power angular tower, combination tubular poles tower, electric tubular pole, substation structure, iron accessories, lightning rod tower and communications, microwave tower.
We have 500kV transmission line tower, microwave communication tower production license, 220kV power electric pole qualification certificate of steel structure qualification certificates and safety production license, railway steel structure product testing qualified report, SGS inspection report, ISO9001, ISO14001, 18001.
Our foreign market is distributed in America, Europe, Australia, southeast Asia, Philippines, Indonesia, Africa, the Middle East. All of our products meet international quality standards and are greatly appreciated a great reputation in a variety of different markets.
Our advantages
1. We have formulated strict workflow and ISO standards in all aspects of electrical product design, production, sales and after-sales, so as to ensure to provide customers with first-class products and best services
2. ISO certified excellent manufacturer, third party authoritative certification: SGS
3. The factory has completed thousands of engineering cases so far, and has rich experience and holiday technology reserves;
4. High quality supplier of State Grid of China;
5. With a strong team to ensure delivery on schedule, you can choose with confidence.
